Recently, our company tested samples of ethyl eicosapentaenoate (EPA-EE) related substances. During the monitoring of a batch of EPA-EE related products using infrared spectroscopy, it was found that the infrared spectra of four EPA-EE related substances did not match their structures. In response, we attached great importance to this issue and immediately initiated an investigation to ensure the controllability of product quality and the reliability of analytical methods.

Product Introduction: Eicosapentaenoic Acid Ethyl Ester (EPA-EE), also known as EPA ethyl ester, is a derivative of Omega-3 fatty acids derived from eicosapentaenoic acid (EPA). In 2012, Vascepa (brand name) developed by Amarin was approved by the U.S. FDA as a prescription drug to reduce the risk of atherosclerotic diseases, achieving significant market presence globally and with its clinical advantages widely recognized. It retains the core physiological functions of EPA while optimizing stability and formulation suitability through chemical modification, making it a key functional lipid in both nutritional and pharmaceutical fields.

I. Research Background: Infrared Data Abnormality

Due to the high sensitivity of ethyl eicosapentaenoate to strong acids and bases, dry and high-temperature conditions, as well as strong light and humidity, the cis-dual bond in its structure may undergo isomerization, generating corresponding cis-trans isomer impurities. Therefore, to strictly control the quality of ethyl eicosapentaenoate in pharmaceuticals, our company has conducted qualitative studies on four related substances of ethyl eicosapentaenoate using infrared spectroscopy.

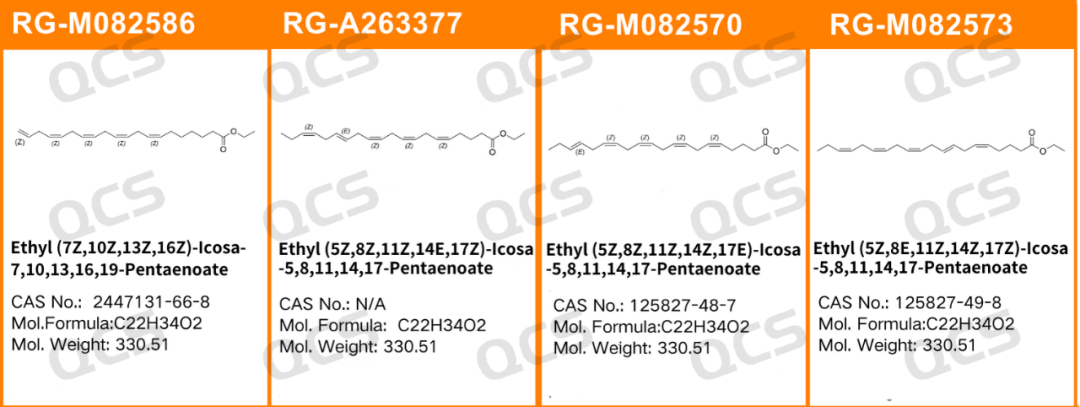

Figure 1: Structural composition of ethyl eicosapentaenoate

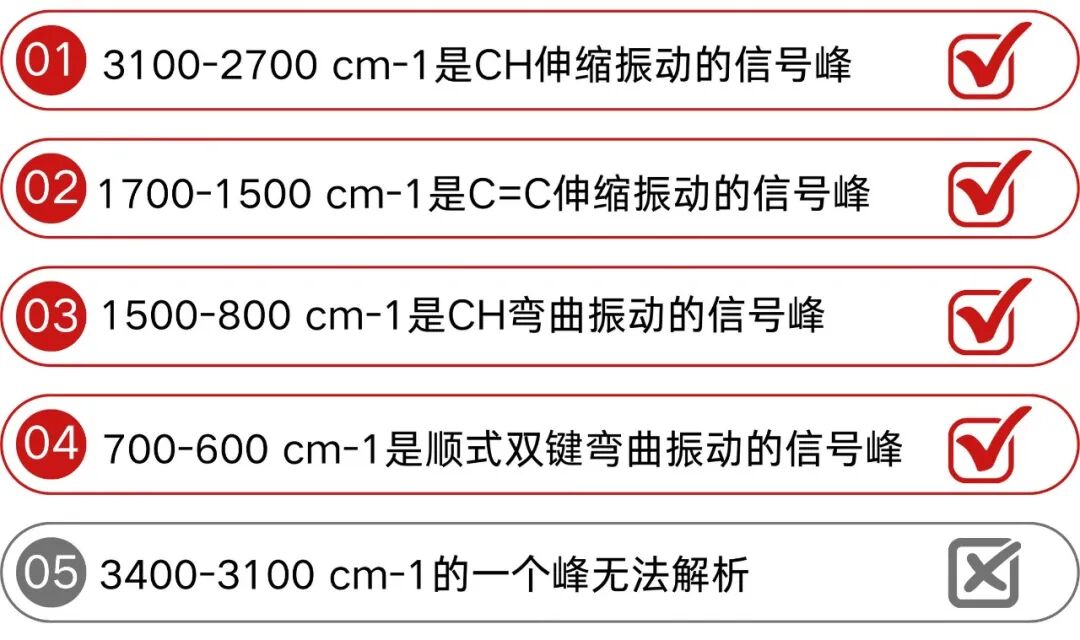

Our analysis of the infrared spectra of the first batch of four products revealed anomalies. The 3100-2700 cm⁻¹ range corresponds to the stretching vibration of CH, while the 1700-1500 cm⁻¹ range shows the stretching vibration of C=C. The 1500-800 cm⁻¹ range indicates the bending vibration of CH, and the 700-600 cm⁻¹ range reflects the bending vibration of cis-dibond. Although these four signals align with the structural predictions, one peak at 3400-3100 cm⁻¹ remains unidentifiable. Such peaks are attributed to vibrations caused by functional groups like hydroxyl (-OH) or amine (-NH) in organic molecules, hence they are also termed hydroxyl or amine vibration peaks.

The double bonds in EPA-EE (particularly the unsaturated bonds of polyunsaturated fatty acids) are prone to oxidation, leading to initial suspicion of hydrogen peroxide formation.

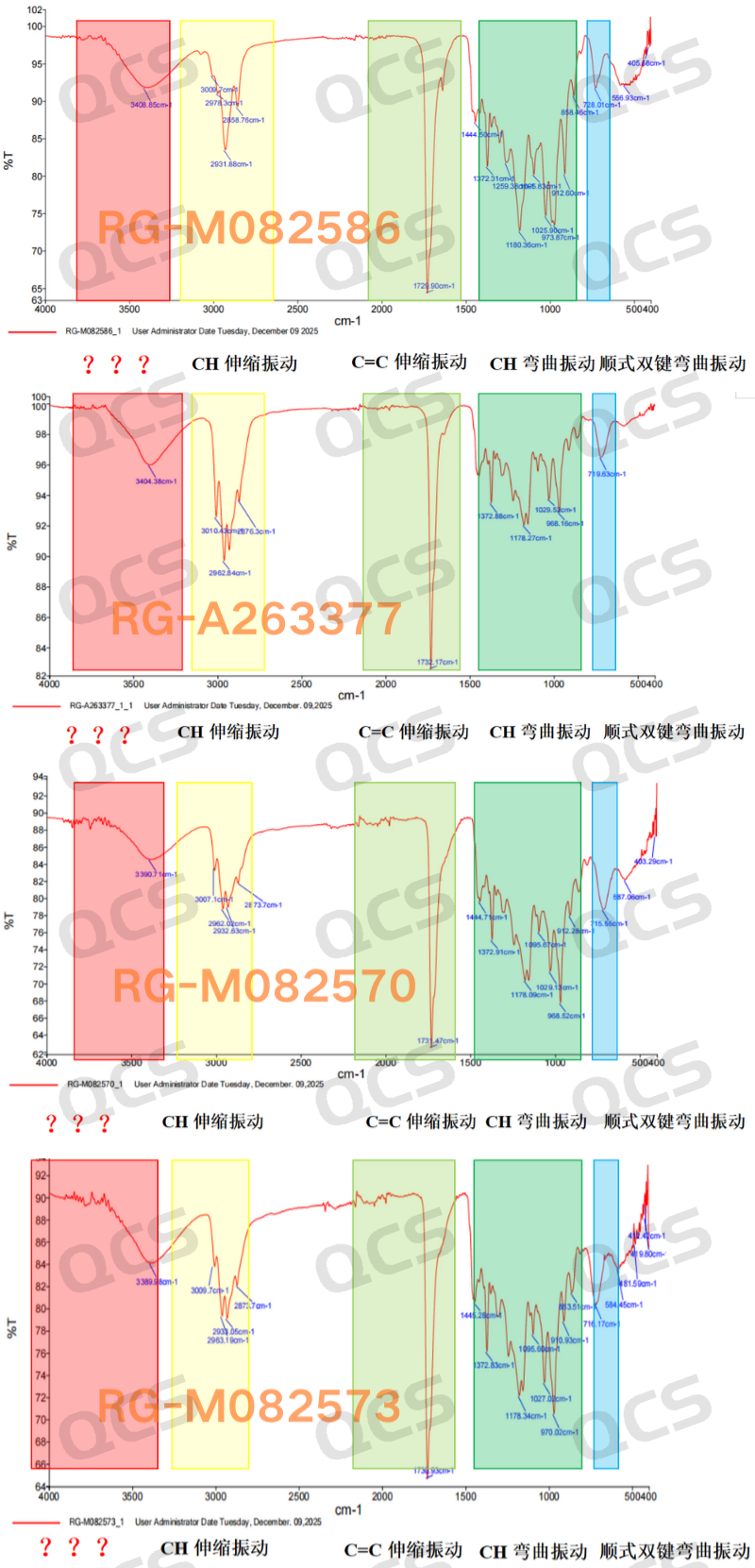

Figure 2: Infrared spectra of four abnormal ethyl eicosapentaenoate-related substances in the first batch

II. Research Focus: Qualitative Validation of Impurities

high resolution mass spectrometry validation

To verify whether the products were oxidized, our company performed qualitative analysis on four products using high-resolution mass spectrometry (HR-MS). The HR-MS results showed no abnormalities, as illustrated in Figure 3.

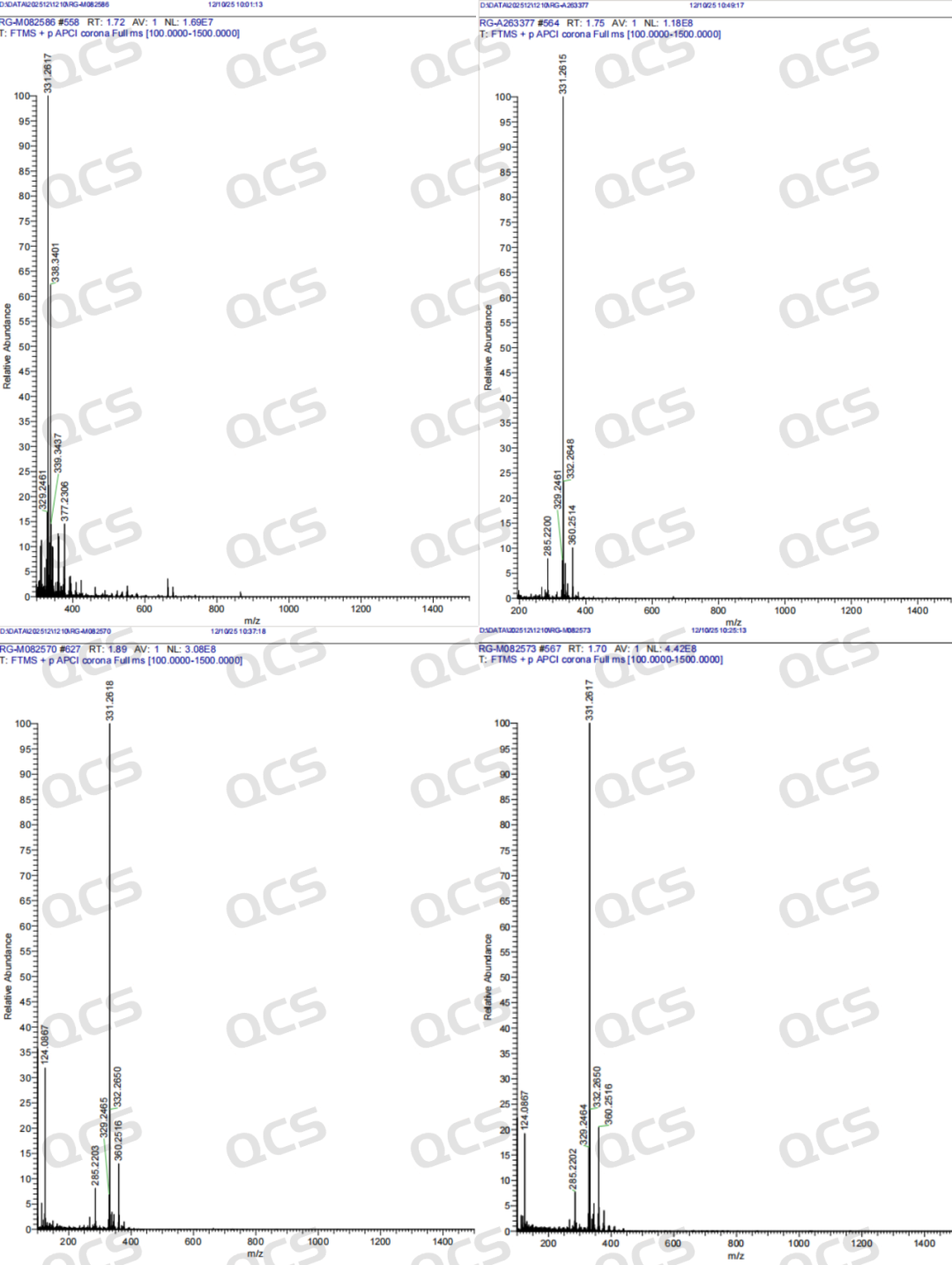

Figure 3: High-resolution mass spectrometry (HRSMS) chromatogram of four abnormal ethyl eicosapentaenoate-related substances in the first batch

Detection of the second batch of inventory samples by infrared spectroscopy

The four ethyl-20-carboxy-5-enoate (EPA-EE) related substance stock samples were retested using infrared spectroscopy, revealing the disappearance of the absorption peak at 3400-3100 cm-1, with no errors observed, as shown in Figure 4.

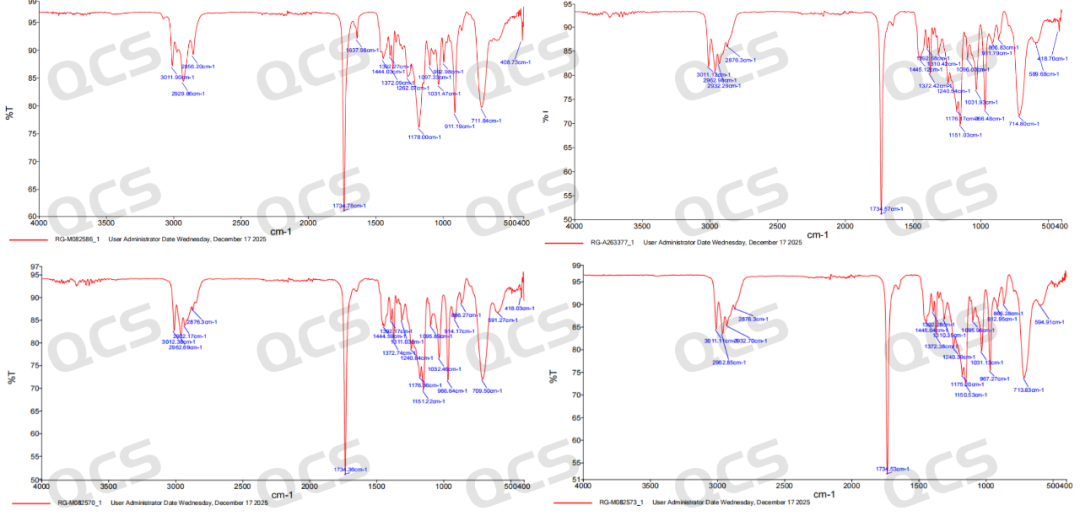

Figure 4: Infrared spectra of four ethyl-20-carboxyfatty acids related substances in the second batch

III. Discussion of Results

In response to this finding, we conducted a traceability analysis of the products. It was discovered that the two batches underwent inconsistent procedures: the first batch was lyophilized after being prepared as a solution and reconstituted as a solution for use, whereas the second batch remained in inventory without undergoing any other operations. Therefore, we infer that the potential causes of the abnormal infrared spectra observed in these four products may include:

related to the structure of four products

The isolated cis-dual bond in its core structure is the "instability factor" —the dual bond readily undergoes oxidation with oxygen (reacting with O₂ to form hydrogen peroxide, which subsequently decomposes into harmful substances such as aldehydes and ketones).

The sample configuration is unstable when prepared as a solution.

The stability of EPA-EE depends on a dry, low-oxygen, low-temperature, and light-protected environment (see previous storage conditions). Once dissolved, it is equivalent to introducing a solvent (which may contain water/oxygen) and a larger surface area (exposed to air), which can easily lead to sample degradation.

IV. Summary

Eicosapentaenoic acid ethyl ester (EPA-EE) related substances exhibit structural instability. Although the ethyl ester bond enhances stability, hydrolysis or moisture absorption must still be avoided. Therefore, scientific storage conditions are crucial for maintaining the activity and quality of EPA-EE. Infrared spectroscopy can monitor the degradation of EPA-EE related substances, making it a highly sensitive method for tracking changes in EPA-EE related products, which outperforms high-resolution mass spectrometry.

Ethyl docosahexaenoate (EPA) is one of our company's best-selling impurity series. This series features complete chromatographic profiles, high purity, competitive pricing, and customization options. For more information on related products and services, please inquire.

Tips

Recommendations for the storage of substances related to ethyl eicosapentaenoate (EPA-EE)

STORAGE RECOMMENDATIONS FOR EPA-EE RELATED SUBSTANCES

1. Temperature: Low temperature refrigeration (preferred)

The optimum temperature is 2~8℃, which can slow down the oxidation rate of the double bond.

2. Humidity: Strict control to prevent moisture absorption

Relative humidity (RH): Should be ≤60% (ideally ≤50%);

Reason: Although EPA-EE lacks free carboxyl groups (making it less prone to direct water absorption), moisture absorption can lead to indirect degradation: water acts as a "catalyst" to accelerate the oxidation of double bonds (water reacts with peroxides to generate hydroxyl radicals, which further oxidize EPA); if the packaging seal fails, moisture will slowly hydrolyze the ethyl ester bonds (yielding EPA and ethanol, thereby losing the stability advantage of the ethyl ester).

3. Lighting: Strict light avoidance (especially ultraviolet radiation)

Key hazard: Ultraviolet (UV) and visible light can excite electronic transitions in EPA double bonds, directly triggering photooxidation (a free radical chain reaction without oxygen involvement), rapidly degrading EPA structure.

4. Sealing: Absolute isolation of air and oxygen

Key mechanism: Oxygen is the primary culprit in EPA-EE oxidation (where double bonds react with O₂ to form hydroperoxides, which then decompose into harmful compounds such as aldehydes and ketones).
